To create a UDL file for SQL connectivity, follow these steps:

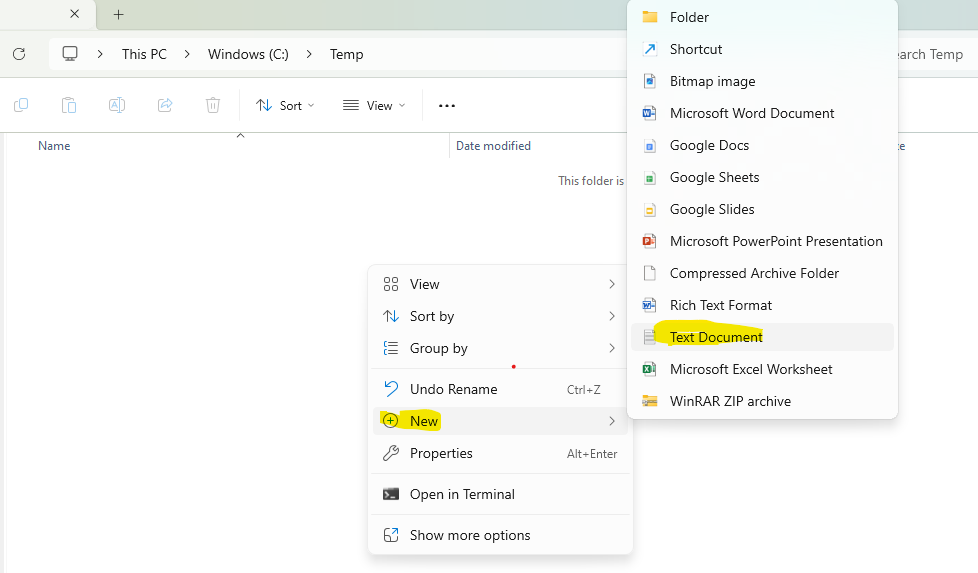

1. Create a new text file.
2. Save or rename the file with a .udl extension.

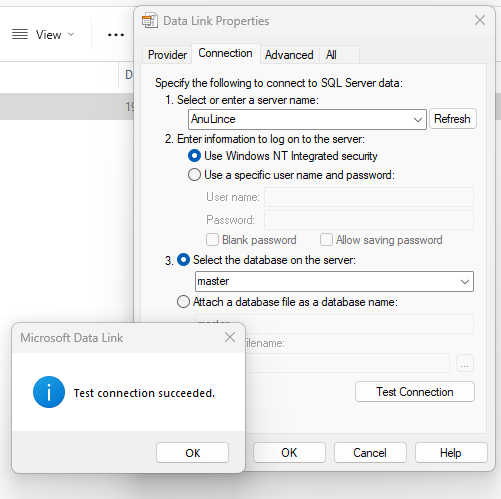

3. Double-click the UDL file to open the Data Link Properties dialog box.
4. On the Provider tab, select the OLE DB provider for SQL Server.
5. On the Connection tab, enter the following information:
- Server name: The name of the SQL Server instance.
- Database name: The name of the database to connect to.
- Authentication: Select the appropriate authentication method.
- User name: The user name to use for authentication.
- Password: The password to use for authentication.
If the connection is successful, you will see a message stating that the connection was successful. If the connection is not successful, you will see a message stating that the connection failed.
UDL files can be a useful tool for troubleshooting SQL connectivity issues. By creating a UDL file, you can easily test different connection settings to see if they are correct. Additionally, UDL files can be used to generate connection strings that can be used in applications.
Benefits of using UDL files for SQL connectivity checks
- Easy to create and use
- Can be used to test different connection settings
- Can be used to generate connection strings
- Can be used to troubleshoot SQL connectivity issues
Conclusion
UDL files are a versatile tool that can be used for a variety of tasks related to SQL connectivity. By understanding how to create and use UDL files, you can save time and effort when troubleshooting SQL connectivity issues.
